AS5600 Tinkering

This page and all descendants are under construction as of June 2026. Don't take what you see as the finished article. Check for changes occasionally.

Frequency Adjusting Thingy

This text will align perfectly with the top of the adjacent image.

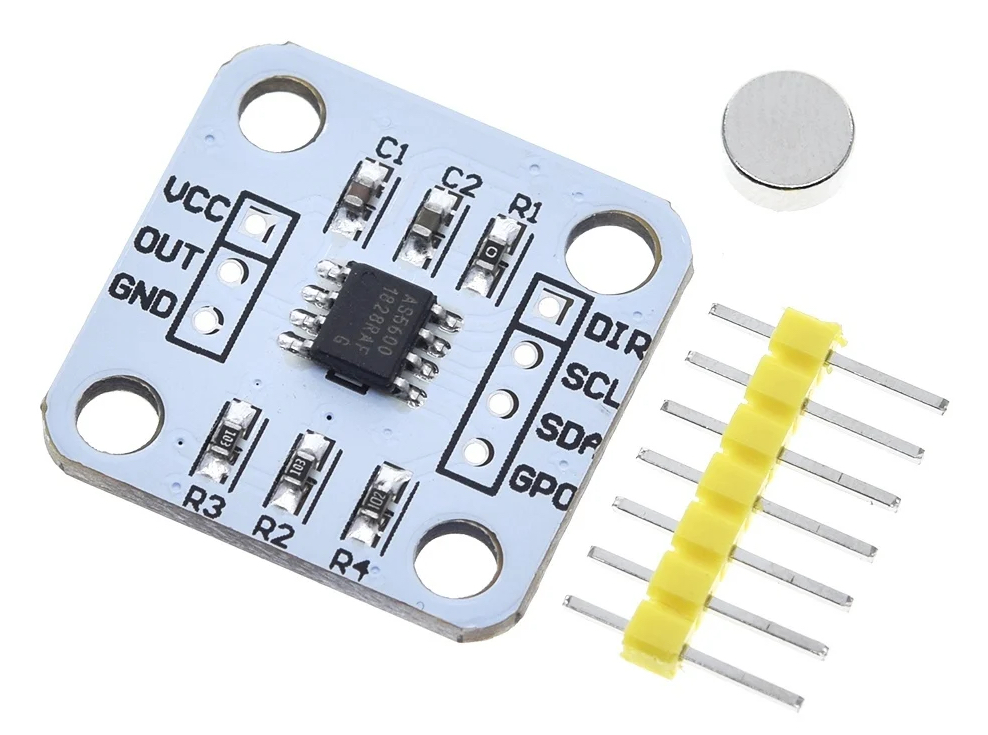

As sold on AliExpress

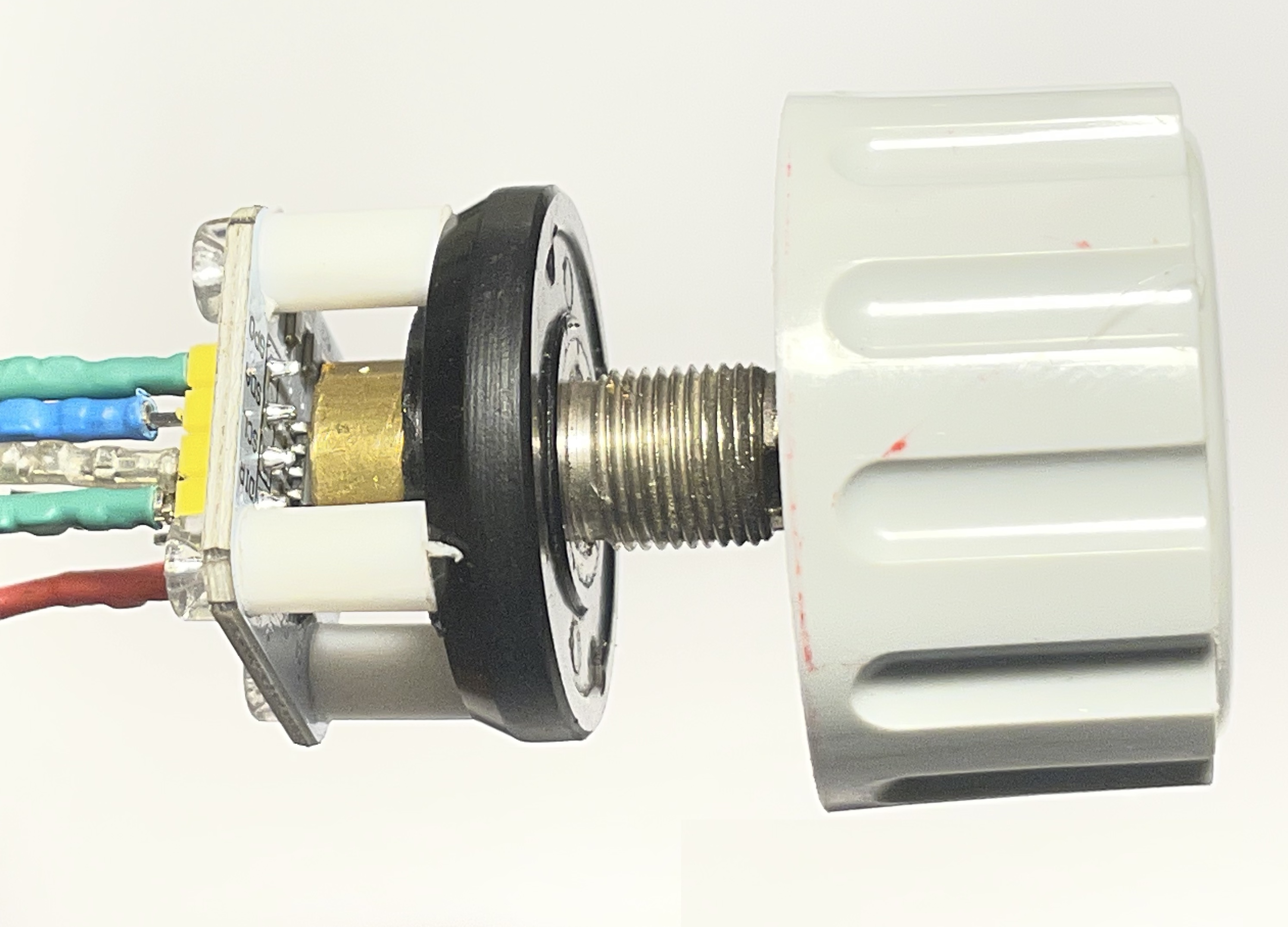

Mounted on the remains of an old potentiometer. The magnet is held about 1mm from the chip.
Example Code This code example contains two useful functions.

readAngle(), which should be called about every 30ms. It returns the amount to change frequency as a signed 32 bit number.

readAGC(), which can be called whenever you like to check magnet spacing. It returns a value from 0 to 127 (when Vcc = 3.3V).

---
